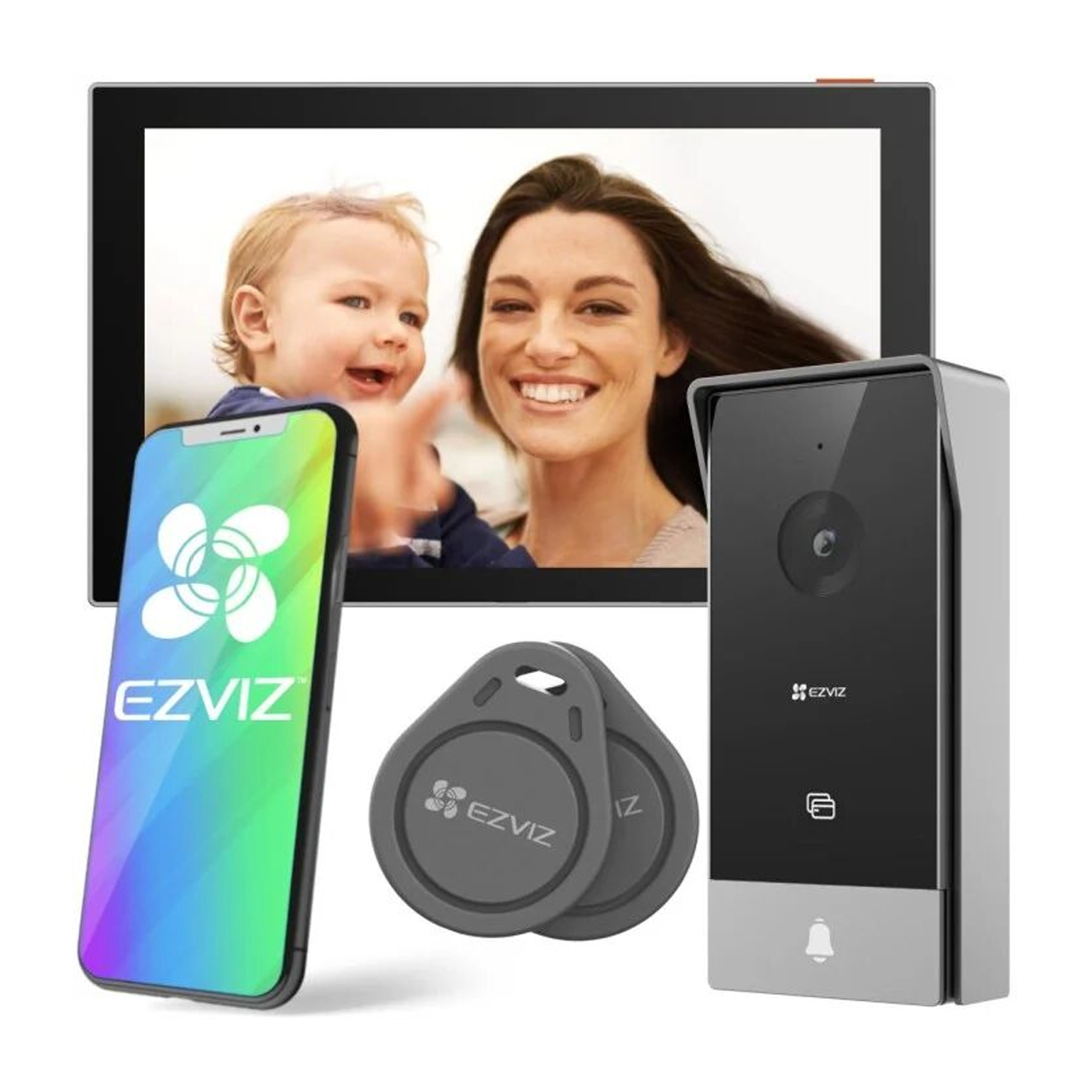

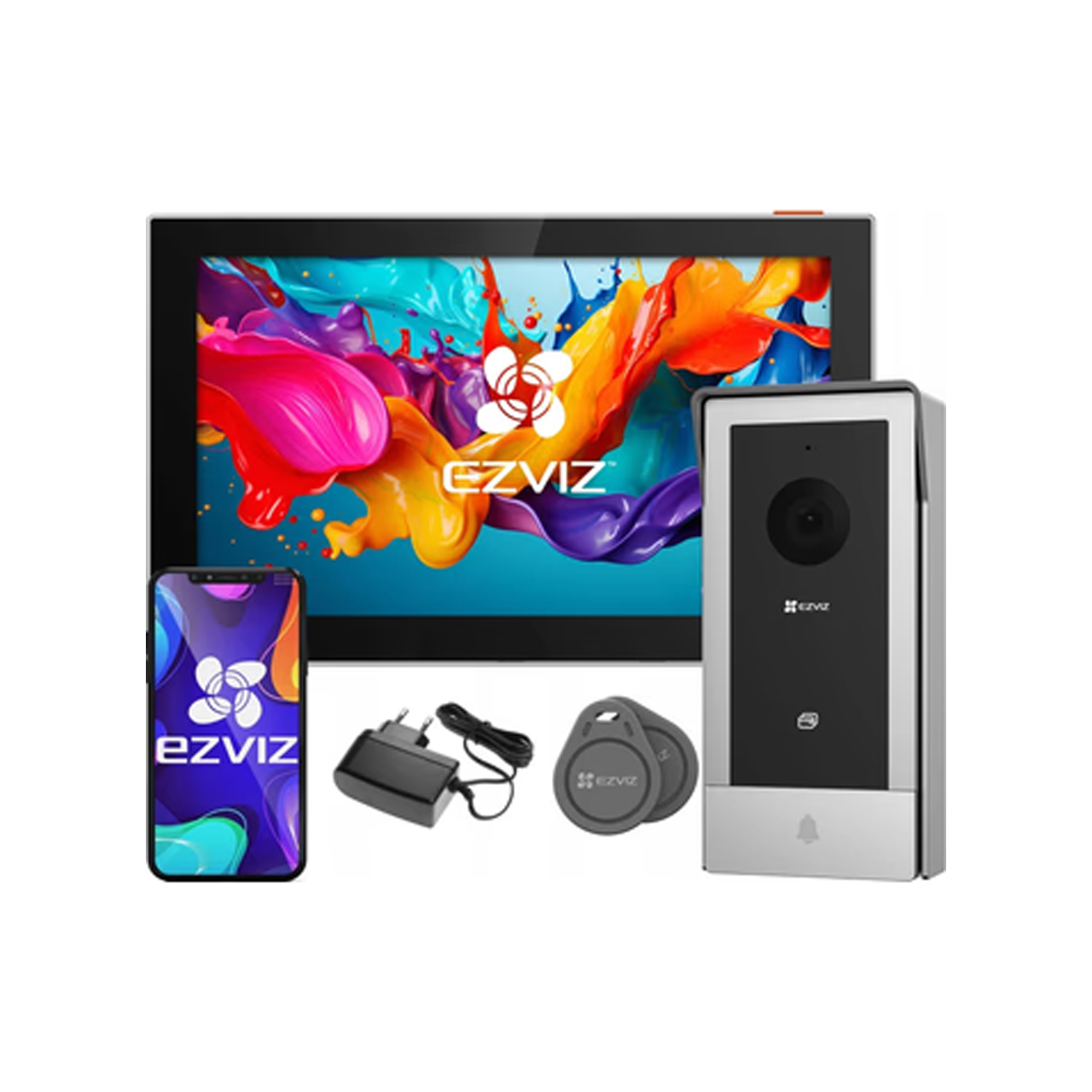

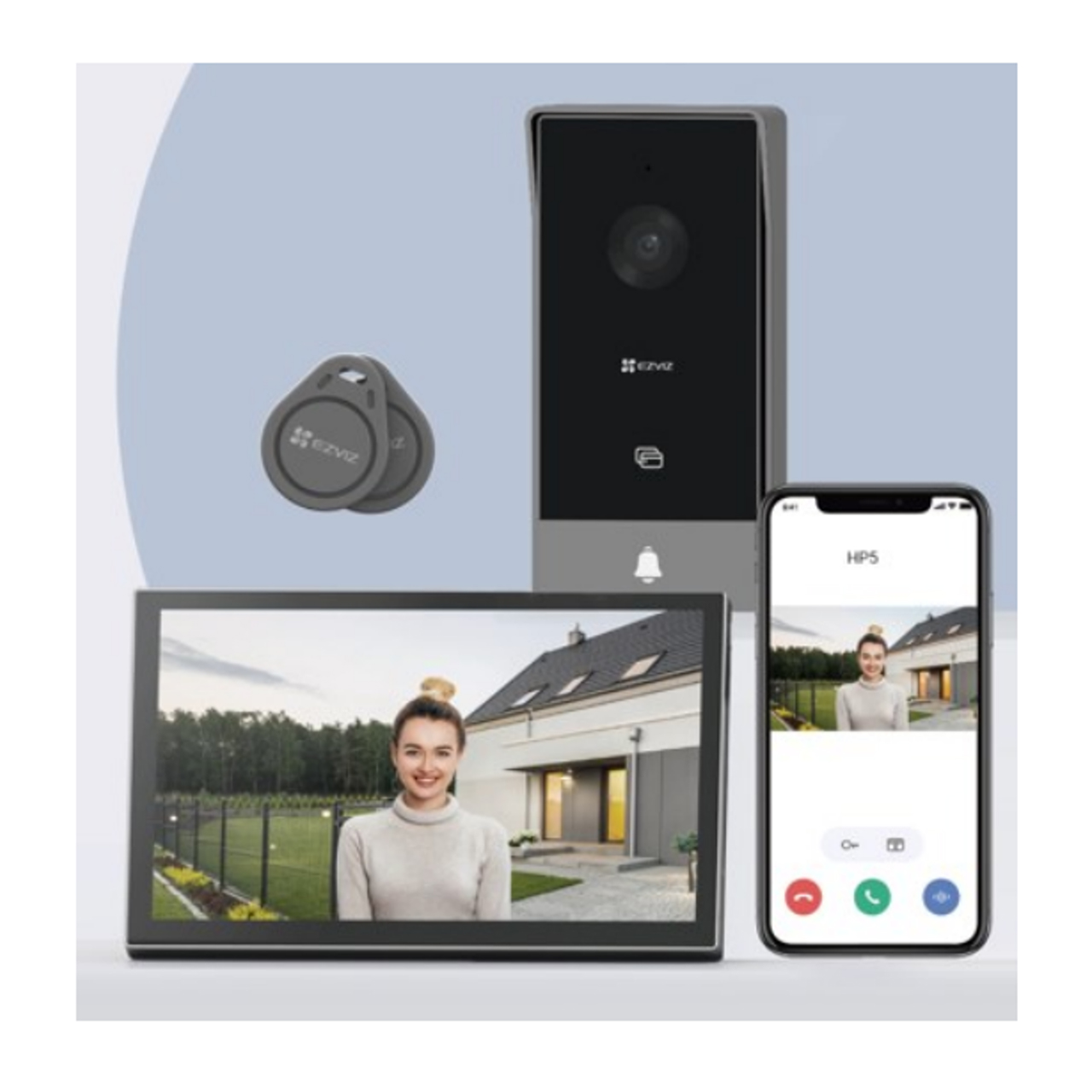

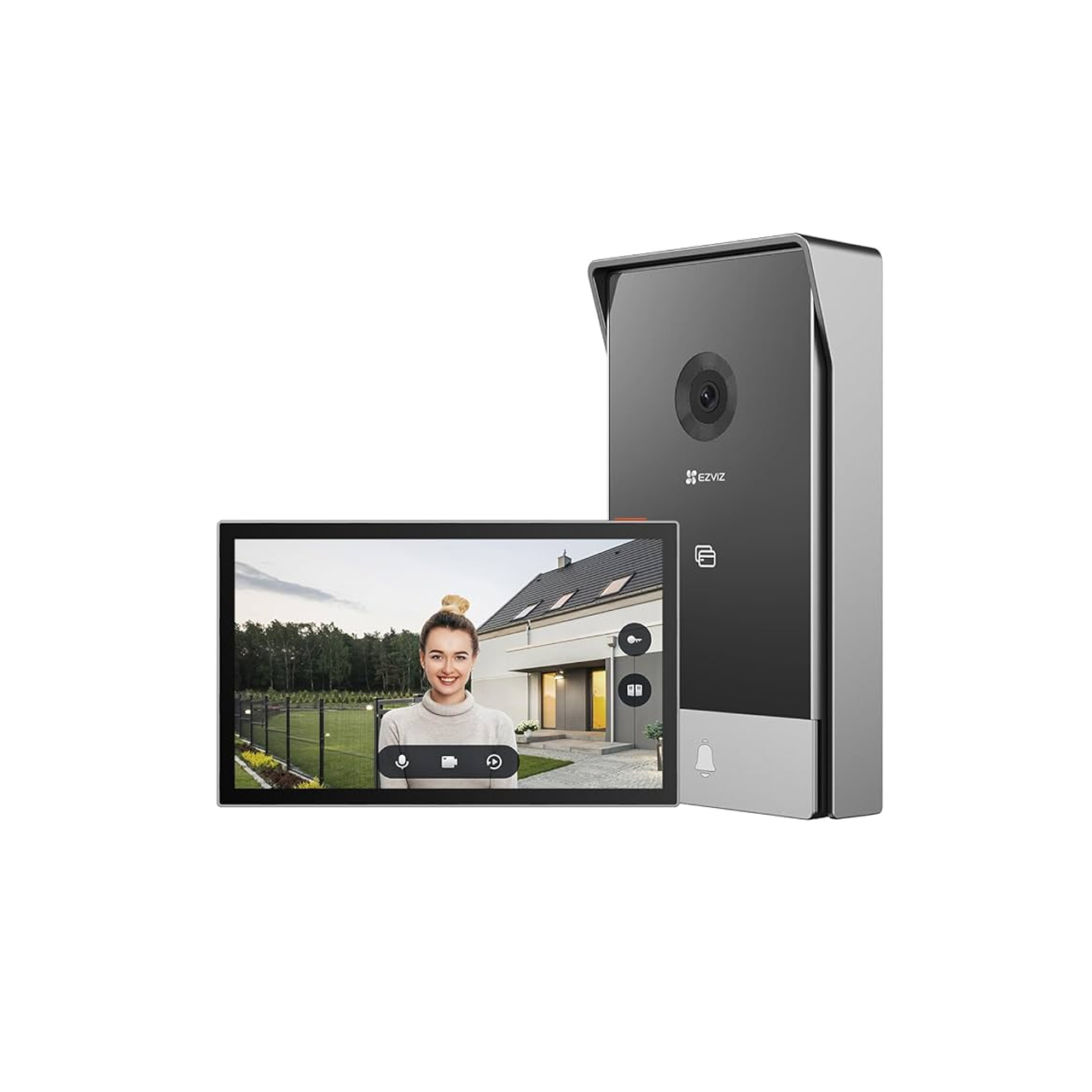

EZVIZ HP5 2MP
| Component | Specification |
|---|---|
| Model | CS-HP5-R100-1W2TFC |
| Image Sensor | 1/2.7″ Progressive CMOS |
| Lens | 2.0 mm, F1.6, 134° diagonal angle |
| Resolution | 1920 × 1080 (1080p) at max 15 fps |
| Night Vision | IR up to 6 m |
| Audio | Built-in mic and speaker, voice changer |
| Connection | Wired: 2-wire (or 4-wire) digital; Wi-Fi: b/g/n/ac dual band |
| Transmission Distance | Up to 120 m on twisted pair cable |
| Unlock Interface | Dry-contact ports for gate or strike plate control |
| Power | DC 24 V, 1.5 A; consumption: 8 W typical, max 24 W |
| Operating Conditions | –10 °C to 45 °C, ≤ 95% RH (non-condensing) |
| Dimensions & Weight | Outdoor panel: 153 × 70.4 × 22.5 mm; Indoor monitor: 180 × 111 × 15 mm; Weight: 639 g |
